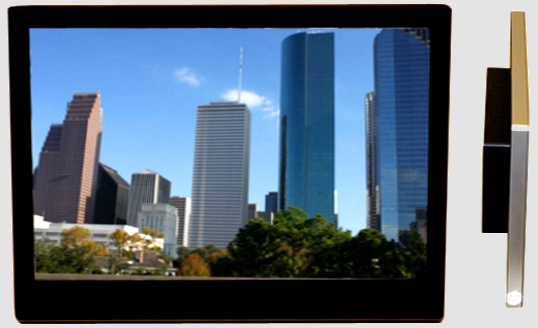

AiO - Capacitive Touch Screens

The EEL Commercial grade All in One PC incorporates all the computer's functions into Stylish brushed aluminum finish design that sheds the traditional cold feel of computers. In addition to being slim line, it’s like a refined accessory that adds to the style and atmosphere of your work environment.

The multi touch capacitive screens make operating the computer simple and convenient. Touching the screen with a finger or stylus takes the place of the mouse. And with a virtual keyboard, entries can be made directly on the screen, which let you forget about the keyboard and mouse while providing the same functionality of a standard desktop PC.

Virtual Sales Assistant


Intel Atom D525.

2024 MB CORSAIR DDR3 1330MHz

Local Storage

320GB SATA II hard drive (2.5”) (5400 rpm)

Enhanced I/O

One VGA Express One stereo audio output (5.1)

One RS232 port Four external USB 2.0 ports

Local Area Network

Two Gigabit LAN 10/100/1000

Wireless LAN (Optional)

Display/Touch Screen

12"/15.6"/17"/19"/22"LED 1366*768 (16:9).

12"/15.6"/17"/19"/22" dual touch capacitance screens


Brushed aluminum frame

Schedule Management

Play timing in year, month and day and turn on/off in 5 times in each day

Dimensions Of Housing unit


Temperature range & Environmental

Storage temperature range -20 to +50Operating temperature 0to 35

Relative humidity 5 to 70%, non-condensing Fully RoHS compliant

Schedule Volume of Audio


OS & Software

Windows 7 or Linux (Windows 7 required for multi touch)

Power Input

Power input: 100 – 240 ac input (auto-switched) Power supply 40(50/60/70) W

System Management

CPU and the system temperature and voltage monitoring and CPU throttling if temperature limits reached

Real time watchdog
