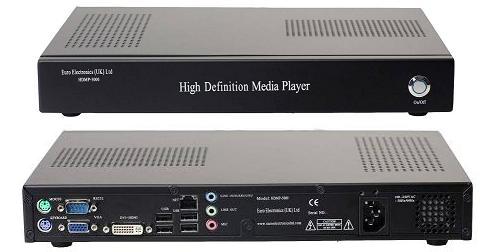

HDMP-5000 Compact HDMI Media Player



Features

  • 1080p HDTV Resolution support
  • DVI/HDMI or VGA Express output
  • Powerful dual-core processor
  • Compact in 1RU format
  • Dual magnetically levitated fans

A key component of the retail management and signage system is the EEL HDMP-5000 ultra compact high definition media layer.

The HDMI-5000 offers four advantages over PCs or other media players. Firstly it is designed to process full high definition content; secondly it will process 1080p signals, thirdly, it has both HDMI and VGA outputs and, fourthly, with a universal mounting bracket it can hang on the back of a flat panel TV.

This ultra compact media player processes 720p, 1080i or 1080p.

Specification

• Processor (CPU): AMD ATHLON™ 64 X2 5600+ (2.6GHz) 2 x 512K L2 Cache (Socket AM2) alternatives available for 1080p, etc.

  Memory (RAM): 1024 MB CORSAIR DDR2 667MHz - (2x512MB)

• Motherboard: HDMI PRO

• Operating System: WINDOWS XP OR LINUX OPERATING SYSTEM

• USB Options: 4 x USB 2.0 PORTS (4 REAR) AS STANDARD

• Memory - 1st Hard Disk: 160GB SATA II HARD DRIVE (2.5")

• Output: HDMI/VGA

• Resolution Support: 720p/1080i/1080p

• Graphics Card: ONBOARD X1050 PCI Express + HDMI + VGA Express

• Sound Card: 7 Channel Realtek ALC 660 High Definition Audio (Onboard)

• Network Facilities: ONBOARD 10/100/1000 GIGABIT LAN PORT (ETHERNET)

• Case: Ultra Compact 360x220x46mm

• Watch-Dog: Hardware

• Power Supply & cooling: STANDARD 350W PSU with CASE FAN

• Compliancy: HDCP compliant

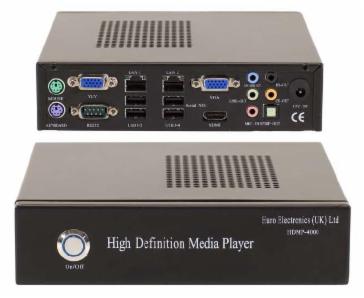

HDMP- 4000 Digital Media Player



Features

  • 1080p HDTV Resolution support
  • HDMI, VGA or YUV output
  • Powerful dual-core processor
  • Ultra compact in 1RU format
  • Magnetically levitated fans
  • Hardware watchdog protected

The ultimate in digital signage media players, the HDMP-4000 delivers the full audio-visual impact of high definition digital video signage in all resolutions including 1080p.

Based on either Windows XP/Vista or Linux, HDMP-4000 processes all popular digital video signage software in their native formats without conversion. This ensures the user is offered maximum flexibility without compromising content quality during managing, distributing and displaying dynamic media files.

The powerful dual-core processor enables complex digital signage design as well as rapid pre-scheduling from play-lists and delivery of a variety of content to different displays. The processor enables real-time ticker-tape messaging and multiple split-screens with each segment displaying different video content.

HDMP-4000 is ruggedly constructed and designed for 24/7 operations in the challenging retail environment with frequent powering off. Additional protection is provided by Watchdog and industrial temperature ranges. The magnetically levitated cooling fan minimizes noise and increases reliability.

This high definition media player is designed to operate either within a head-office server controlled Internet or WAN (head office to branch) network or in stand-alone mode. Its compact size enables it to be hung from the rear of a display screen.


Specification

• Processor (CPU): AMD ATHLON™ 64X2 4200+ (2.2GHz)  2 x 512K L2 Cache (Socket AM2)

• Memory (RAM): 1024 MB CORSAIR DDR2 667MHz

• Local Storage: 120G SATA II hard drive (2.5")

• Operating Systems Supported: Windows XP Pro, Embedded, Vista and Linux

• Enhanced I/O: Four external USB 2.0 ports, One RS232 port, PS/2 mouse and keyboard, VGA with HDMI, YUV or S-Video

• Local Area Network: Gigabit LAN 10/100/1000, Optional Wireless LAN

• Display/Audio: Integrated ATI 690 GPU, supports all common resolutions up to 1920 x 1080 including 720p, 1080i and 1080p, 5.1 Audio, 2 channels HDMI audio output, SPDIF output.

• Power input: 100 - 240 AC input (auto-switched)

• Environmentals/mechanicals: Unit size 180 X 180 X 46mm, operating temperature 5 ℃ to 45 ℃, fully RoHS compliant, storage temperature range -20 ℃ to +50 ℃, relative humidity 5 to 70%, non-condensing

• System management: CPU temperature and voltage monitoring, CPU throttling if temerature limits reached, hardware watchdog protected (programming period: 1-255s)




HDS-1000


Description

HDS-1000 is a rack-mountable content source generator which outputs high definition video from a built in hard drive. The standard DVD drive makes content management easy and efficient while the component, DVI and audio connections provides flexibility in display options.

Applications

HDS-1000 is suitable for in-store HDTV promotion where the source generator is required to be placed out-of-site either rack or shelf mounted.

Specification

• 1080I, 720p, 576p, 576I, 480p, 480I.

• Output bit rate – 30 Mb/s .

• 2u rack-mountable unit.

• Upscale DVD playback to HDTV.

• Progressive scan, PAL/NTSC, 4:3 and 16:9 aspect ratio.

• Firmware to provide smart update function.

• 6 parallel output ports, 2 DVI and 4 components.

• 1 Audio pair output

• DVD-ROM disk causes new content to be automatically loaded to HDD.

• 240v 50Hz.

HDS-2000


Description

HDS-2000 is a compact and stylish content source generator outputting high definition content from a built in hard disk drive. The standard DVD drive makes content management easy and efficient while the component, DVI and audio connections provides flexibility in display options.

Applications

HDS-2000 is suitable for in-store HDTV promotion where the source generator is required to be placed in view of customers. However, it is designed not to look like a consumer product to discourage tampering.

Specification

• 1920x1080i or1280x 720p Video.

• Output MPEG-2 up to 30 Mb/s.

• Supports 4:3 & 16:9 TV mode.

• EAC Dolby Digital 5.1 6-channel Audio.

• Contents preset and updated by DVD-ROM.

• Smart update function (firmware upgradeable).

• Elapse time up to 400 minutes.

• Four parallel output ports: 2 DVI pus 2 components.

• One audio output pair

• 40 GB Hard Disk Drive.

• Measurements: 17 x 13 x 2.2inch (430 x 330 x 57 mm).

• Power 100 ~ 240AC/50 ~ 60Hz.

HDS-2500


Description

HDS-2500 is a development from the HDS-2000, However, the hard disk drive has been replaced by a CF memory card which is also used for updating content. All 4 outputs are by HDMI which integrates the video and audio cables into one clean and easily managed cable system.

Applications

Like the HDS-2000, the HDS-2500 is suitable for in-store HDTV promotion where the source generator is required to be placed in view of customers. It is designed for full HDMI systems and updating of content is by flash memory or CF card.

Specification

• 1920x1080i or1280x 720p Video.

• Output MPEG-2 up to 30 Mb/s.

• Supports 4:3 & 16:9 TV mode.

• EAC Dolby Digital 5.1 6-channel Audio.

• Contents preset and updated by DVD-ROM.

• Smart update function (firmware upgradeable).

• Elapse time up to 400 minutes.

• Four parallel output ports: 2 DVI pus 2 components.

• One audio output pair

• Compact Flash (CF) memory.

• Measurements: 17 x 13 x 2.2 inch (430 x 330 x 57 mm).

• Power 100 ~ 240AC/50 ~ 60Hz.
